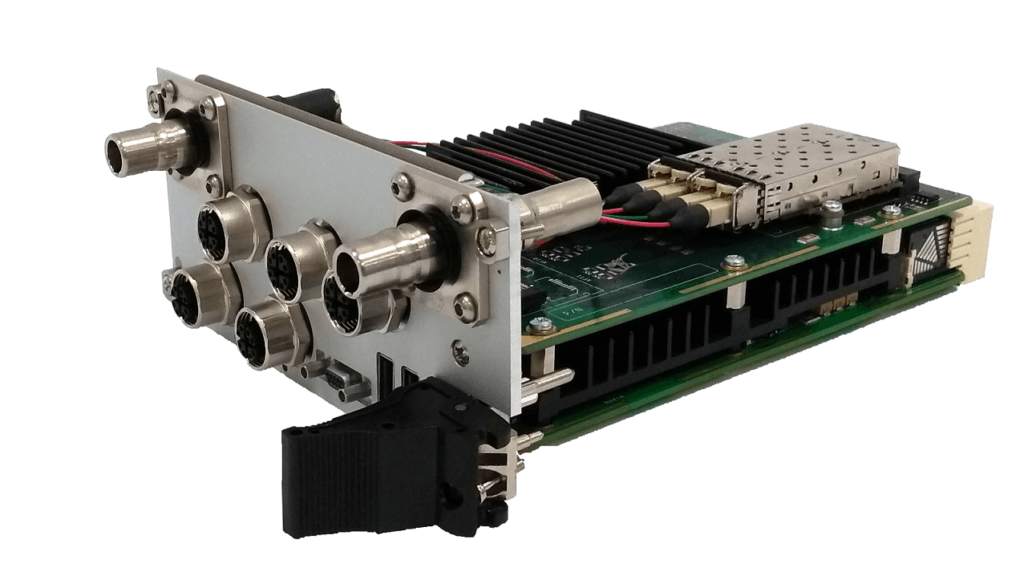

CompactPCI® – Serial System Card with Ethernet Switch

  • NXP QorlQ® T1042 quad-core processor
  • 4 GB DDR3 Low Voltage Memory with ECC, 64b width, soldered
  • Ultra-Low Power TSN 1GbE/2.5GbE Broadcom® RoboSwitch™ BCM53162 with two 10GbE Uplinks
  • two Q-ODC connectors for 10GbE optical
  • 2 GB NAND Flash
  • slots for μSD card
  • front panel 3U12HP:
  • microDB9 for Serial port and 2x USB2.0 (from CPU T1042)
  • 5x M12 X-Code for GbE (one from T1042, four from switch BCM53162)
  • cPCI-S backplane with 3xUSB, SATA, four PCIe1x, IPMB
