TS02-108

Professional Tablet

ts02-108-thumbnail

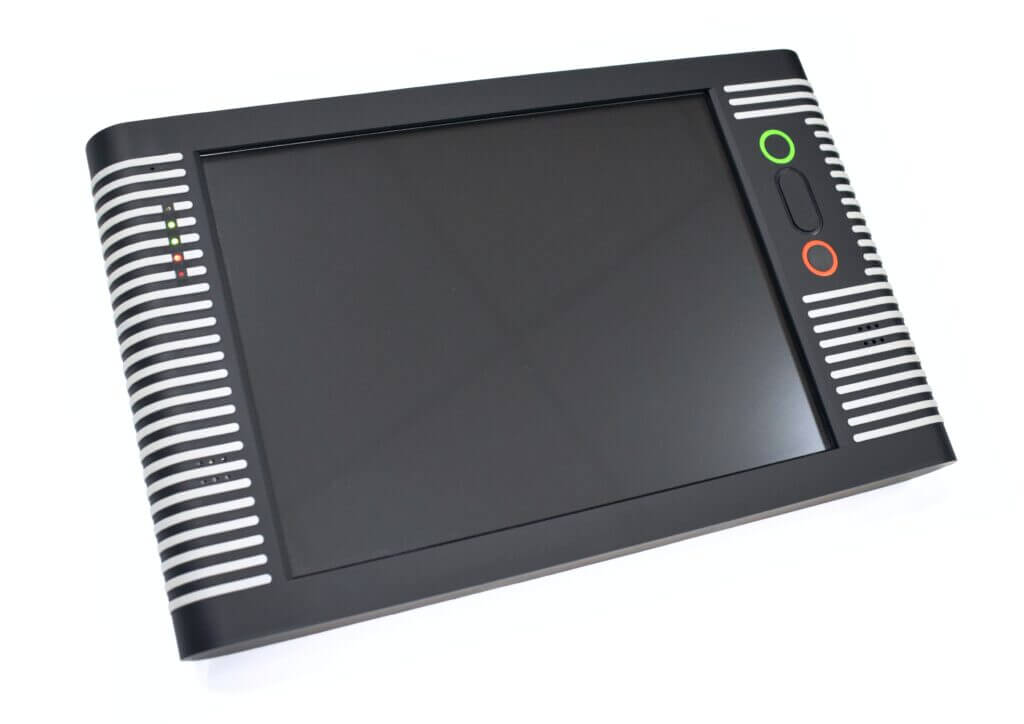

TS02-108-Front

Professional tablet for industrial use. The device features a large capacitive touchscreen with strong glass cover (Asashi Dragontail), physical control buttons, encased in a rugged body with rubber handles. The tablet can be equipped with various internal and optional modules.


Core Components
  • i.MX 8M Mini
  • 4× Arm Cortex-A53 processors, up to 1800 MHz, (32 KB L1 I-Cache, 32 KB L1 D-Cache, 512 KB L2-Cache)
  • 1x low power Arm Cortex-M4 core up to 400 MHz, (16 KB L1 I-Cache, 16 KB L1 D-Cache, 256 KB tightly coupled memory
  • 256 KB Boot ROM
  • 256 KB + 32KB On-chip RAM
  • 2 GB LPDDR4 (on-board)

Graphics
  • 2D and 3D Graphics
  • 1080p video Decode Acceleration (H.265, H.264, VP8, VP9)
  • 1080p video Encode Acceleration (H.264, VP8)

Storage
  • 32 GB eMMC Flash memory
  • 512 kbit ID EEPROM
  • microSD/microSDHC/microSDXC slot for additional storage (up to 64 GB)
Display
  • High brightness 10,4’’ LCD with LED backlight
  • resolution 1024×768 pixels
  • 211.2 x 158.4 display active area
  • brightness 800 cd/m2
  • multipoint capacitive touch-screen
  • 10 touch point
  • 1.8mm Super-strong glass cover (Asahi Dragontrail)

Camera
  • 5Mp rear camera (activ array size: 2592×1944)
  • Auto-focus support
  • Video support:
    • QSXGA (2592×1940): 15 fps, 1080p: 30 fps, 1280×960: 45 fps, 720p: 60fps, VGA (640×480) 90fps, QVGA (320×240): 120 fps
  • Integrated flash
Systems
  • 3-axis, 10-bit/8-bit digital accelerometer (selectable full scales of ±2 g/±4 g/±8 g ), with Output data rates (ODR) from 1.56 Hz to 800 Hz
  • Real Time Clock
  • four status LEDs
  • four funkction button
  • one power button
  • stereo speakers, each 1000mW
  • integrated microphone
  • ambient light sensor
Connections
  • USB 2.0 Host (connector type A)
  • USB 2.0 Device (connector type B)
  • RJ45, 100 Mbps Ethernet
  • connector for stereo speaker/microphone
  • BlueTooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.2
  • Wifi 2.4GHz, 150/150 Mbps rates ( standards IEEE 802.11b/g/n/d/e/h/i)
Technical parameters
  • Operating temperature
    • -20°C to 55°C
  • Power supply
    • OBD 9 – 36 VDC
    • Jack 12-24 VDC
    • 24,4 Wh internal battery
  • Power consumption
    • 25 W full operation
    • 50 mW sleep
  • Dimensions
    • 310mm×191mm×35mm (excluding connectors and handle
  • Weight
    • 1 602 g (with no optional modules)
GSM (optional)
  • LTE cat.4 (150/100Mbps (UL/DL)), UMTS/HSPA+, GSM/GPRS/EDGE
  • internal nanoSIM card socket (or optional M2M eSIM, or slot for microSIM)
Tracking (optional)
  • GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS with support A-GPS.
Oscilloscope (optional)
  • 4 channel, each galvanic isolated (1 kV)
  • 20 MS/s (each channel),
  • 50 mV/div – 100V/div
OBD Diagnostic Interface (optional)
  • Fault tolerant CAN ISO11519,
  • CAN ISO11898
  • K-line, L-line
  • VPW, PWM
Extendability
  • customer modules on PCIe / I2C / UART

Tablet features expansion slots in the rear, allowing the device to be extended with for custom sensors or modules for special applications. These include extensions such as digital oscilloscope, various camera modules, GPS/GSM/LTE devices and other accessories.

TS02-108-Back

TS02-108 Professional Tablet has been designed to be durable for mobile rugged use, withstanding shock, vibration and operation in wide temperature range (-40°C to 70°C). This allows the tablet to be used in harsh conditions, such as industrial and military environment.


The device is equipped with i.MX 8M Mini CPU module (ARM 4-core), 2 GB LPDDR4 on-board memory and 32 GB eMMC Flash memory for storage. Other peripheries include 5 megapixel rear camera, microSD memory slot for additional storage, 3-axis digital accelerometer, stereo speakers, ambient light sensor, Bluetooth, Ethernet RJ45 and Wifi connectivity, USB connectors A and B and 3.5mm stereo audio jack. Operating system of the device is based on Android 9.0 and can be controlled via the main 10.4 inch capacitive touch screen.
