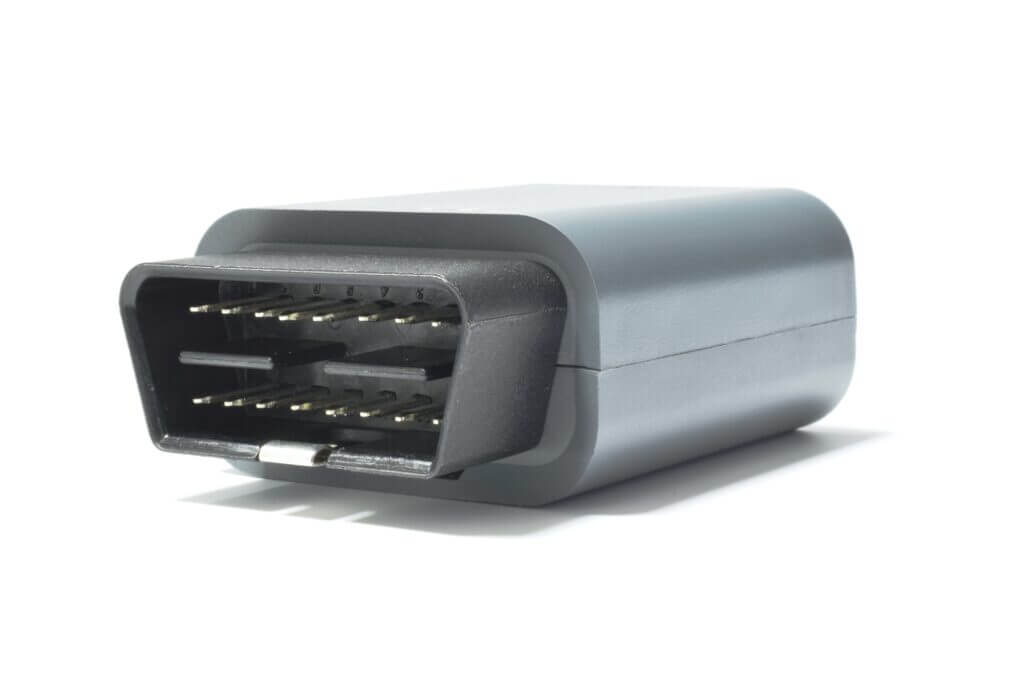

OBD Head IoT Unit

Tracker with IoT Telematics

This interface is used for communication with the vehicle ECUs. The unit can request extended range of vehicle data via OBD, read vehicle faults and check its condition and position. The unit handles up to 6 simultaneous CAN connections and K-Line connections for reading Telematics data specific to each car. It then sends this information to the selected remote server or via Bluetooth to the connected device.

Ideal solution for Fleet tracking, monitoring, automated trip logging and other projects, which require remote access to all the important vehicle information.

This device version is not intended for general vehicle serial diagnostics. For vehicle diagnostics, please visit the page for the specialized Troodon OBD device version.


Fully featured telematics

Our custom telematics solution can provide all the information you need about your monitored vehicles. The device can be also easily integrated into an already existing service.

Conventional solutions

  • 1 CAN bus connection
  • Engine Control Unit only
  • E-OBD data only
  • No customization support

TS02-110 OBD Head Telematics

  • 6 CAN bus connections including single wire and fault tolerant, K-Line, VPW (SAE J1850)
  • Data from various control units, including Instrument Clusters, Door Control Units, Airbags, ABS, Chassis/Body Control Modules, Infotainment and more
  • E-OBD data and Custom Telematic Data with parameters for specific vehicles
  • Fully customizable, including support for custom apps

Use case examples

Robust Fleet Tracking solution

Web-based fleet tracking and data collection allows for full-scale monitoring of all connected vehicles. Customers can easily access trip history of each vehicle, track their average fuel consumption, read Diagnostic Trouble Codes (DTC), set service reminders and much more.

Real-time telematics

The device can be connected to an existing service or as a full ready-to-deploy solution.

All the parameters, location and other statistics for all vehicles are available in real-time in Fleet Tracking Dashboard, accesible from any device via web browser. Individual vehicle data can also be configured for local access via USB, Bluetooth or Wifi connection directly from the device.


The TS02-110 OBD Head unit is connected to the vehicle’s diagnostic socket. It offers functions for reading vehicle parameters, GPS position tracking and basic diagnostics via the E-OBD standard. It transmits the acquired data to a remote server via GSM, or to a paired device via Bluetooth or Wi-fi. From here it is also possible to control and adjust the unit. The unit communicates with the vehicle via CAN or K-Line.

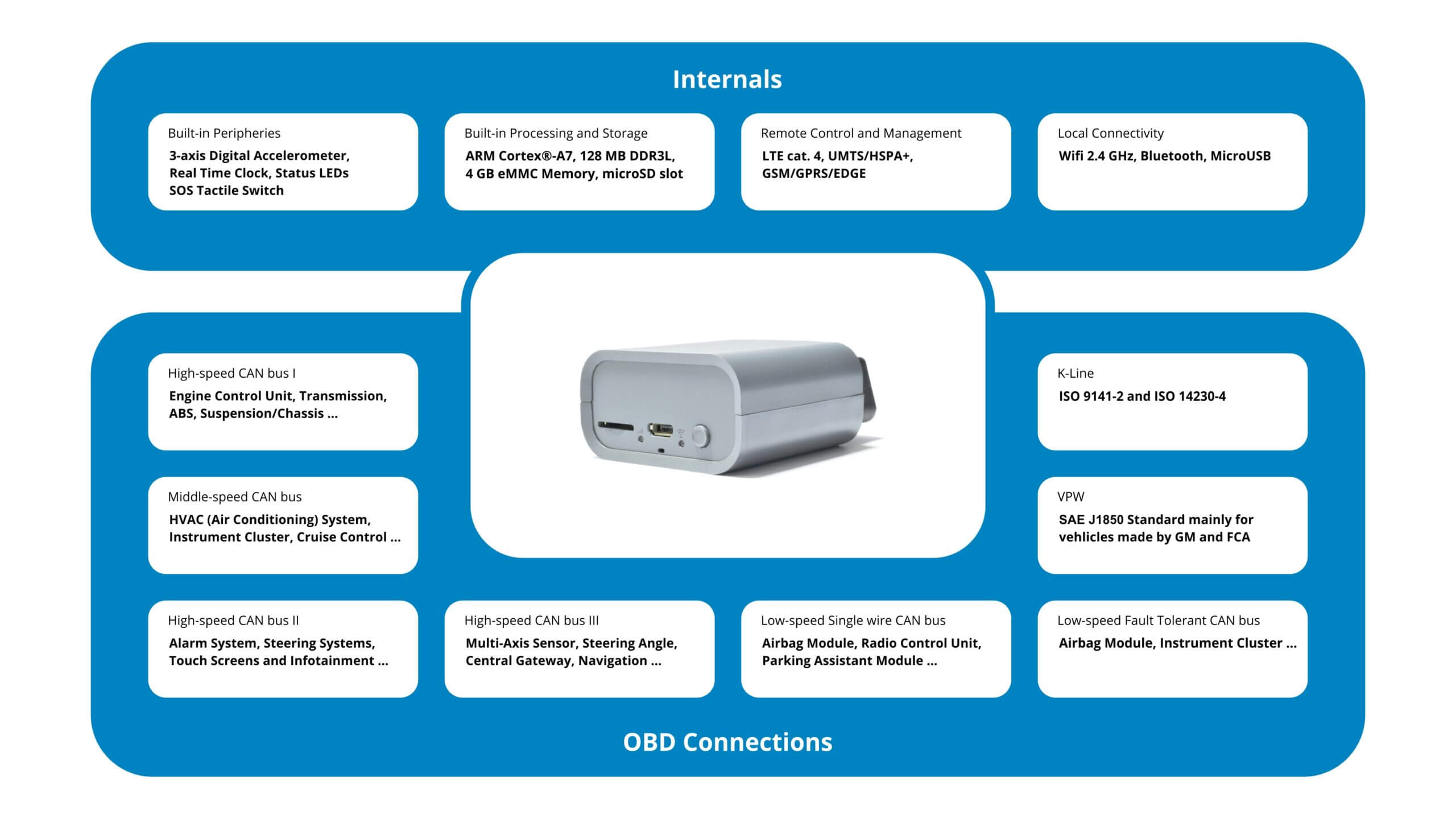

TS02-110 Internals and OBD Connections
Internals and OBD Connections (click to enlarge)

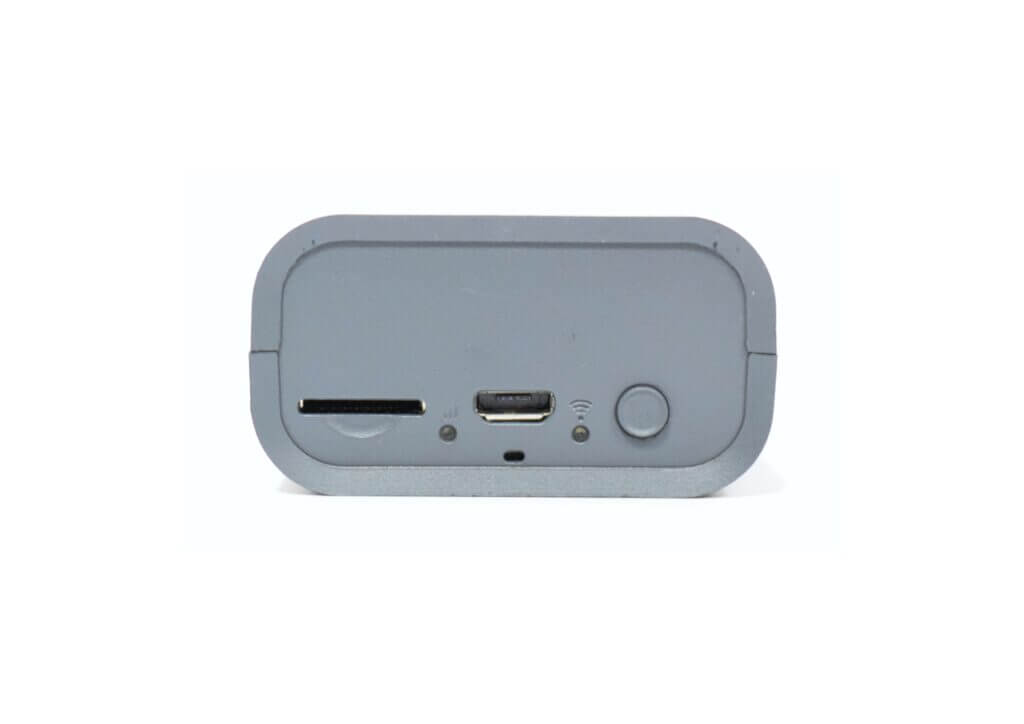

Technical Specification


  • CPU ARM Cortex®-A7 (32 KB I-Cache, 32 KB D-Cache, 128 KB L2-Cache) up to 528MHz
  • 128 MByte DDR3L Memory
  • 4 GByte eMMC Memory
  • slot for microSD/microSDHC/microSDXC card
  • 3-axis, 10-bit/8-bit digital accelerometer (selectable full scales of ±2 g/±4 g/±8 g ), with Output data rates (ODR) from 1.56 Hz to 800 Hz
  • Real Time Clock
  • two status LEDs
  • SOS tactile switch


  • micro USB AB connector (USB Device)
  • Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.2
  • Wifi 2.4GHz, 150/150 Mbps rates ( standards IEEE 802.11b/g/n/d/e/h/i)
  • LTE cat.4 (150/100Mbps (UL/DL)), UMTS/HSPA+, GSM/GPRS/EDGE
  • internal nanoSIM card socket (optional M2M eSIM)

OBD Interface

  • Fault tolerant CAN ISO11519 on OBD (Hi/Low)
  • 6x CAN ISO11898 on OBD (Hi/Low)
  • K-line
  • VPW
  • Service connector variant available

Position Tracking

  • GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS with support A-GPS

Supported Parameters

Custom Telematic Dataset parameters are available for more than 500 vehicles. Specific parameter support is dependent on available equipment and ECUs in the vehicle. For vehicles not yet supported by this dataset, E-OBD parameter reading is still available.

Examples of ECUs and supported parameters:

Engine Control Unit

  • Engine RPM
  • Battery Level
  • Engine Coolant Temperature
  • Engine Oil Temperatur
  • Fuel Rate/Flow, Engine Fuel Rate
  • MIL Emission Control System
  • Mileage To Service
  • Oil Life Remaining – Distance (or Days)
  • Fuel Consumption
  • Cruise Control Status
  • Time since engine start

ABS/ESP Module

  • Warning Brake Fluid Level Low
  • Warning Brake Pads
  • Brake Pedal Status

Airbag Control Module

  • Individual Seat Belt Status

Instrument Cluster

  • Odometer
  • Fuel Level
  • Vehicle Speed
  • Fuel Consumption
  • Trip Meter
  • Mileage To Service
  • Change Oil Lamp Indicator
  • Warning Lamps indicator

Transmission Module

  • Transmission Fluid Temperature
  • Transmission Gear

Tire Pressure Monitoring (TPMS)

  • TPMS Reading (x4 wheels), Tire Pressures
  • Tire Warning Lamp (defect)

Central Gateway

  • VIN identification

Central Electronic Module

  • Doors / Locks Status
  • Windows Status
  • Light Switch Position
  • Interior Light Status
  • Turn Signal Status
  • Warning Lights
  • Park Brake Status
  • Ignition (Switched Power Supply)

Air Conditioning (HVAC)

  • Outside temperature
  • Inside temperature
  • Air conditioning Status

Auxiliary heating

  • Heating status
